AEM with react.

Installing AEM locally and integrating React for front end is actually more straight-forward than described in the official Adobe documentation.

If you tried to follow their guide and got lost in details or errors, the steps below should help. Follow through and if you encounter errors, please add them in the comments section.

For this tutorial I’m installing everything directly in C:\.

What we’ll cover

1. Install Java & set up the environment variable
2. Install Apache Maven
3. Install Node.js and npm
4. Install AEM 6.5 locally
5. Add the adobe-public-profile to your Maven settings.xml file
6. Customize your IDE for AEM work
7. Generate a new project with the AEM archetype
8. Install React with CRA
9. Integrate React into the AEM instance

In part II, we’ll look at how to Install and integrate the AEM SPA Editor JS SDK.

Install Java 1.8+ and set up the environment variable

Download Java 1.8+ here and install it. Open a new command line and check if the installation was performed properly by running this command:

java -version

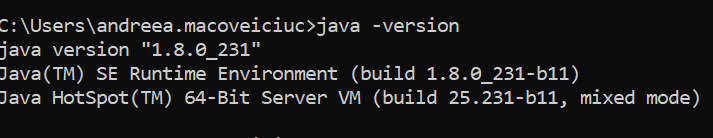

You should see something like this:

If it doesn’t say Java (TM) SE Runtime Environment, then you don’t have the correct version.

In order to be able to develop on AEM, you need a development tool called JDK (Java Development Kit), which includes the Java Runtime Environment, the Java compiler and the Java APIs.

The latest version of the JDK can be found here.

Next, we need to make sure that JAVA_HOME environment variable is set and points to the JDK installation from above. Here’s how to do it for Windows 10, if you’re using a different OS, please follow the steps here.

1. In the Windows Search bar, type Control Panel and open it, then click on Advanced system settings.

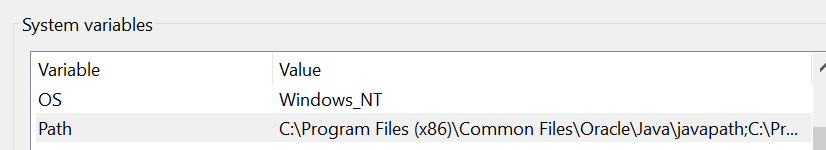

2. Click on Environment Variables, the go to System Variables, and find the PATH variable. Select it and click Edit. If you don’t see such a variable, click on New and create it.

In the edit mode, click on New and add the line highlighted below:

%JAVA_HOME%\bin

Install Apache Maven 3.3.9+

Download Apache Maven 3.3.9+ from here and install it. To install it, you just need to unzip the apache-maven-3.6.2-bin.zip archive.

Next, add the bin directory to the PATH environment variable. Follow the same steps as above, and in the PATH, add this line:

C:\apache-maven-3.6.2-bin\apache-maven-3.6.2\bin

NOTE: This line above may vary in your case, if your Maven folder has a different name. So find the location of the bin folder in your Maven folder, and copy that path.

To confirm the installation, run this command in the terminal:

mvn -version

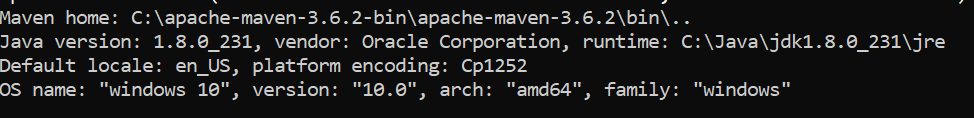

You should see something like this:

Install Node.js v10+ and npm v6+

For front end, we need Node.js and npm installed, so download Node here and follow the installation steps.

Node comes with npm so once the installation is done, you can check if both tools were added to your system by running these commands, one by one, in the command line:

node -v
npm -v

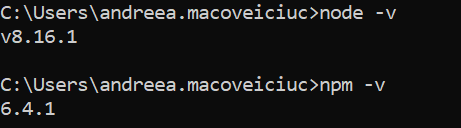

You should see something like this:

Install AEM 6.5 locally

From your company, you should have a .jar file and a license provided, the package should look like this:

To install AEM, create a new folder, for example C:\Program Files\aem. Then, follow the steps below:

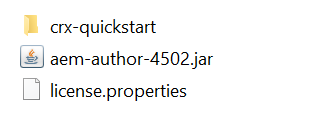

1. Place the .jar and license files in this directory, and create two new folders: one called author, and one called publish.

2. Copy the .jar and license file to the author folder. Then, copy the same files to the publish folder, but this time, rename the jar file as follows:

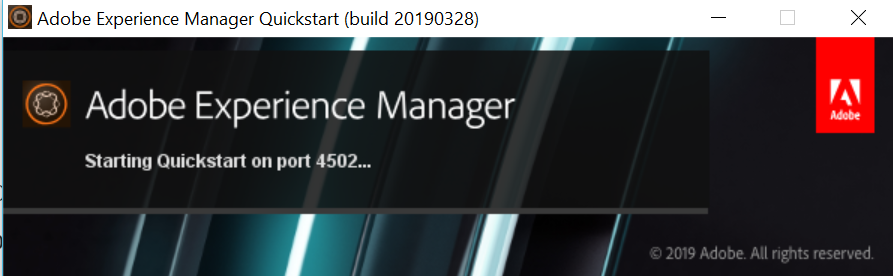

3. Now you can double-click the author .jar, and this will start up the instance of AEM locally. You should see something like this:

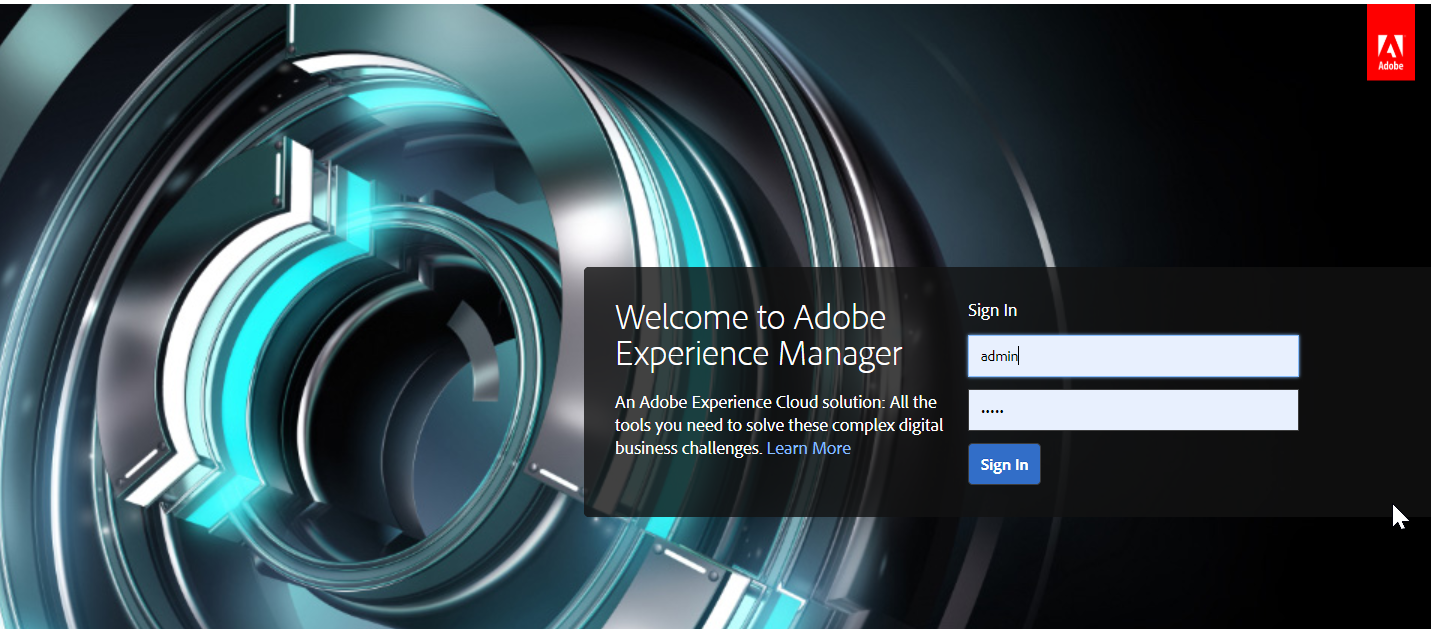

This will open the author instance running on localhost, on port 4502.

Add the Adobe public profile to your Maven settings.xml

The overview of this process is also described here, but I’ll list the steps below.

There are two locations where the Maven settings.xml file has been added:

• in the Maven installation folder, under ${maven.home}/conf/settings.xml
• in your user folder, under ${user.home}/.m2/settings.xml

It’s not mandatory to see both these files, but the first one should be there. If both files are present, their content gets merged and the user-specific settings are applied.

Let’s add the Adobe public profile to the first file. Under settings, you should see something like this:

<settings xmlns=”http://maven.apache.org/SETTINGS/1.0.0"
xmlns:xsi=”http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation=”http://maven.apache.org/SETTINGS/1.0.0https://maven.apache.org/xsd/settings-1.0.0.xsd"><localRepository/><interactiveMode/><offline/><pluginGroups/><servers/><mirrors/><proxies/><profiles/><activeProfiles/></settings>

The Adobe profile should be added under <profiles>:

<profiles>
<!-- ====================================================== -->
	        <!-- A D O B E   P U B L I C   P R O F I L E                -->
	        <!-- ====================================================== -->
	        <profile>
	            <id>adobe-public</id>
<activation>
	                <activeByDefault>false</activeByDefault>
	            </activation>
<properties>
	                <releaseRepository-Id>adobe-public-releases</releaseRepository-Id>
	                <releaseRepository-Name>Adobe Public Releases</releaseRepository-Name>
	                <releaseRepository-URL>https://repo.adobe.com/nexus/content/groups/public</releaseRepository-URL>
	            </properties>
<repositories>
	                <repository>
	                    <id>adobe-public-releases</id>
	                    <name>Adobe Public Repository</name>
	                    <url>https://repo.adobe.com/nexus/content/groups/public</url>
	                    <releases>
	                        <enabled>true</enabled>
	                        <updatePolicy>never</updatePolicy>
	                    </releases>
	                    <snapshots>
	                        <enabled>false</enabled>
	                    </snapshots>
	                </repository>
	            </repositories>
<pluginRepositories>
	                <pluginRepository>
	                    <id>adobe-public-releases</id>
	                    <name>Adobe Public Repository</name>
	                    <url>https://repo.adobe.com/nexus/content/groups/public</url>
	                    <releases>
	                        <enabled>true</enabled>
	                        <updatePolicy>never</updatePolicy>
	                    </releases>
	                    <snapshots>
	                        <enabled>false</enabled>
	                    </snapshots>
	                </pluginRepository>
	            </pluginRepositories>
	        </profile>
</profiles>

Then, right under </profiles>, add these lines also:

</profiles>
<activeProfiles>
     <activeProfile>adobe-public</activeProfile>
 </activeProfiles>
</settings>

Now, check if the setup is working by running this command in the command line:

mvn help:effective-settings

Customize your IDE for AEM work

This step is optional, but if you want to follow through, please check the steps here. I use VSCode, so I installed the following extensions:

• [repo] — FTP-like tool for JCR content
• [aemfed] — Speed up your AEM front-end workflow
• [AEM Sync] — Community supported* extension for Visual Studio Code

However because I was getting errors with VSCode, in the end I finalized the integration using the command line.

Generate a new project using the AEM Archetype

Start the local AEM author environment by double-clicking the cq-author-p4502.jar file. This should be running in the background.

Then, get the AEM project archetype from here. Add it to the same project folder, then open the command line and in that folder, run this command:

mvn -B archetype:generate -DarchetypeGroupId=com.adobe.granite.archetypes -DarchetypeArtifactId=aem-project-archetype -DarchetypeVersion=23 -DaemVersion=6.5.0 -DappTitle="AemReact" -DappId="aemreact" -DgroupId="com.aemreact" -DfrontendModule="react" -DincludeExamples=n

This will create a new folder called aemreact with all the needed tools and dependencies. Also, you should see an ui.frontend folder, which contains your React application and dependencies.

In the parent folder of your project, run this command to deploy your project, as it is for now, to your local AEM instance:

mvn clean install -PautoInstallPackage -Padobe-public

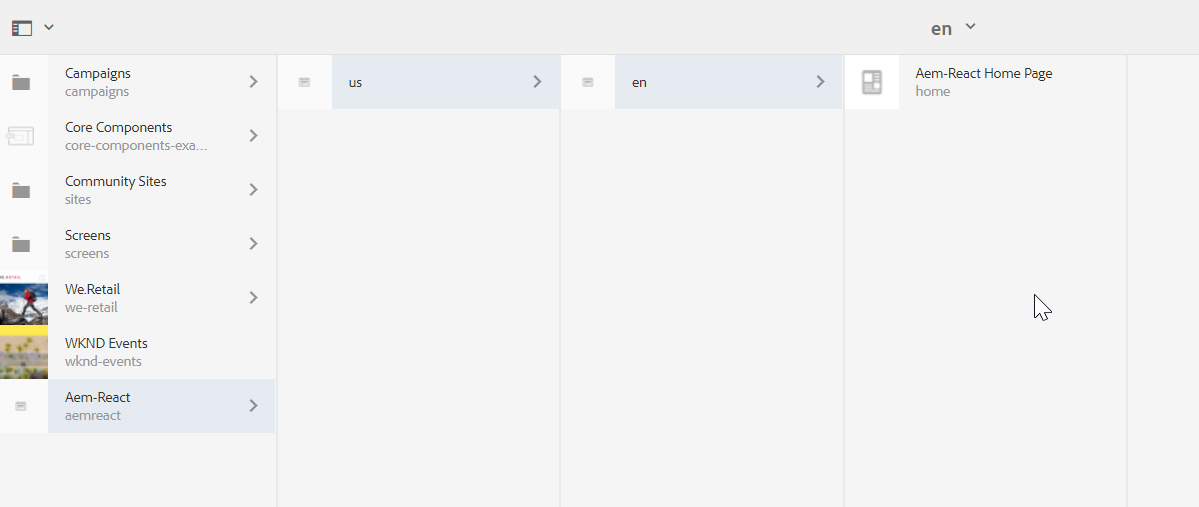

If you now navigate in the browser to http://localhost:4502, you should see the AEM React project:

The problem that I had with this setup was that the React app was not loaded into AEM, so the page was blank. For this reason, I installed create-react-app on top of this implementation, and then used this application instead of the default one.

Install React with CRA

Install React using create-react-app (CRA), by running this command in the aemreact folder, in the terminal:

npx create-react-app react-app

Now move to the react-app folder, and run this command in the terminal:

npm install
npm run start

Your React application should be available at http://localhost:3000 to view it in the browser.

Next step is to build the production build by running this command in the terminal:

npm run build

In VSCode I usually open another terminal, but you can also press ctrl+c for stopping the previous process and then run this command.

Move the React files into an AEM client library

We want our React app to run inside AEM, not as a separate project, so we need to move these files into an AEM client library and deploy it as part of the ui.apps module.

We will use two tools for this:

• aem-clientlib-generator — used to transform compiled CSS and JS files into an AEM client library
• frontend-maven-plugin — used to trigger NPM commands via a Maven build.

Configure the aem-clientlibs generator

In your aemreact/react-app folder, install the aem-clientlibs-generator node plugin by running this command in the terminal:

npm install aem-clientlib-generator --save-dev// You should see the dev dependency added to your package.json file.

Next, create a new file in the react-app folder, and name it clientlib.config.js. In this file, add the following code:

module.exports = {// default working directory (can be changed per 'cwd' in every asset option)context: __dirname,// path to the clientlib root folder (output)clientLibRoot: "./../ui.apps/src/main/content/jcr_root/apps/aemreact/clientlibs",libs: {name: "react-app",allowProxy: true,categories: ["aemreact.react"],serializationFormat: "xml",jsProcessor: ["min:gcc"],assets: {js: ["build/static/**/*.js"],css: ["build/static/**/*.css"]}}};

Next, add the clientlib directive as part of the npm run build script by updating react-app/package.json file as follows:

{"name": "react-app",
"version": "0.1.0",
"private": true,
"dependencies": {
"@testing-library/jest-dom": "^4.2.4",
"@testing-library/react": "^9.5.0",
"@testing-library/user-event": "^7.2.1",
"react": "^16.13.1",
"react-dom": "^16.13.1",
"react-scripts": "3.4.1"
},
"scripts": {
"start": "react-scripts start",
"build": "react-scripts build && clientlib --verbose",
"test": "react-scripts test",
"eject": "react-scripts eject"
},
"eslintConfig": {
"extends": "react-app"
},
"browserslist": {
"production": [
">0.2%",
"not dead",
"not op_mini all"
],
"development": [
"last 1 chrome version",
"last 1 firefox version",
"last 1 safari version"
]
},
"devDependencies": {
"aem-clientlib-generator": "^1.7.1"
}
}

To test if it’s all good until now, run this command in the react-app folder, in the terminal:

npm run build

You should now see in ui/apps/src/main/content/jcr_root/apps/react-app/clientlibs/ a folder named react-app, which contains css and js files generated from the react app.

Configure the frontend-maven-plugin

The next step is to turn the react-app project into a Maven module. You can do this by following the steps below:

1. Open the parent pom.xml file found in the aemreact/ folder. Add the following code:

<?xml version="1.0" encoding="UTF-8"?><!--|  Copyright 2015 Adobe Systems Incorporated||  Licensed under the Apache License, Version 2.0 (the "License");|  you may not use this file except in compliance with the License.|  You may obtain a copy of the License at||      http://www.apache.org/licenses/LICENSE-2.0||  Unless required by applicable law or agreed to in writing, software|  distributed under the License is distributed on an "AS IS" BASIS,|  WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.|  See the License for the specific language governing permissions and|  limitations under the License.--><project xmlns="http://maven.apache.org/POM/4.0.0"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd"><modelVersion>4.0.0</modelVersion><groupId>com.aemreact</groupId><artifactId>aemreact</artifactId><packaging>pom</packaging><version>1.0-SNAPSHOT</version><description>AemReact</description><modules><module>all</module><module>core</module><module>react-app</module><!--<module>ui.frontend</module>--><module>ui.apps</module><module>ui.apps.structure</module><module>ui.content</module><module>it.tests</module><module>it.launcher</module><module>dispatcher</module></modules><properties><aem.host>localhost</aem.host><aem.port>4502</aem.port><aem.publish.host>localhost</aem.publish.host><aem.publish.port>4503</aem.publish.port><sling.user>admin</sling.user><sling.password>admin</sling.password><vault.user>admin</vault.user><vault.password>admin</vault.password><!-- Update: Used by frontend-maven-plugin --><frontend-maven-plugin.version>1.6</frontend-maven-plugin.version><node.version>v8.16.1</node.version><npm.version>6.4.1</npm.version><!-- end update --><core.wcm.components.version>2.8.0</core.wcm.components.version><bnd.version>5.0.0</bnd.version><project.build.sourceEncoding>UTF-8</project.build.sourceEncoding><project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding><spa.project.core.version>1.0.6</spa.project.core.version></properties><build><plugins><!-- Maven Release Plugin --><plugin><groupId>org.apache.maven.plugins</groupId><artifactId>maven-release-plugin</artifactId><version>2.5.3</version><configuration><scmCommentPrefix>[maven-scm] :</scmCommentPrefix><preparationGoals>clean install</preparationGoals><goals>install</goals><releaseProfiles>release</releaseProfiles></configuration></plugin><!-- Maven Source Plugin --><plugin><groupId>org.apache.maven.plugins</groupId><artifactId>maven-source-plugin</artifactId><version>3.0.1</version><inherited>true</inherited></plugin><!-- Maven Enforcer Plugin --><plugin><groupId>org.apache.maven.plugins</groupId><artifactId>maven-enforcer-plugin</artifactId><executions><execution><id>enforce-maven</id><goals><goal>enforce</goal></goals><configuration><rules><requireMavenVersion><version>[3.3.9,)</version></requireMavenVersion><requireJavaVersion><message>Project must be compiledwith Java 8 or higher</message><version>1.8.0</version></requireJavaVersion></rules></configuration></execution></executions></plugin><!-- Maven Compiler Plugin --><plugin><groupId>org.apache.maven.plugins</groupId><artifactId>maven-compiler-plugin</artifactId><configuration><source>1.8</source><target>1.8</target></configuration></plugin></plugins><pluginManagement><plugins><plugin><groupId>com.github.eirslett</groupId><artifactId>frontend-maven-plugin</artifactId><version>1.7.6</version><configuration><nodeVersion>v10.13.0</nodeVersion><npmVersion>6.9.0</npmVersion></configuration><executions><execution><id>install node and npm</id><goals><goal>install-node-and-npm</goal></goals></execution><execution><id>npm install</id><goals><goal>npm</goal></goals></execution></executions></plugin><!-- Maven Jar Plugin --><plugin><groupId>org.apache.maven.plugins</groupId><artifactId>maven-jar-plugin</artifactId><version>3.1.2</version></plugin><!-- Maven Clean Plugin --><plugin><groupId>org.apache.maven.plugins</groupId><artifactId>maven-clean-plugin</artifactId><version>3.0.0</version></plugin><!-- BND Maven Plugin --><plugin><groupId>biz.aQute.bnd</groupId><artifactId>bnd-maven-plugin</artifactId><version>${bnd.version}</version><executions><execution><id>bnd-process</id><goals><goal>bnd-process</goal></goals><configuration><bnd><![CDATA[Bundle-Category: ${componentGroupName}# export all versioned packages except for conditional ones (https://github.com/bndtools/bnd/issues/3721#issuecomment-579026778)-exportcontents: ${removeall;${packages;VERSIONED};${packages;CONDITIONAL}}# reproducible builds (https://github.com/bndtools/bnd/issues/3521)-noextraheaders: true-snapshot: SNAPSHOTBundle-DocURL:-plugin org.apache.sling.caconfig.bndplugin.ConfigurationClassScannerPlugin-plugin org.apache.sling.bnd.models.ModelsScannerPlugin]]></bnd></configuration></execution></executions><dependencies><dependency><groupId>org.apache.sling</groupId><artifactId>org.apache.sling.caconfig.bnd-plugin</artifactId><version>1.0.2</version></dependency><dependency><groupId>org.apache.sling</groupId><artifactId>org.apache.sling.bnd.models</artifactId><version>1.0.0</version></dependency></dependencies></plugin><plugin><groupId>biz.aQute.bnd</groupId><artifactId>bnd-baseline-maven-plugin</artifactId><version>${bnd.version}</version></plugin><!-- Maven Resources Plugin --><plugin><groupId>org.apache.maven.plugins</groupId><artifactId>maven-resources-plugin</artifactId><version>3.0.2</version></plugin><!-- Maven Compiler Plugin --><plugin><groupId>org.apache.maven.plugins</groupId><artifactId>maven-compiler-plugin</artifactId><version>3.8.1</version></plugin><!-- Maven Installer Plugin --><plugin><groupId>org.apache.maven.plugins</groupId><artifactId>maven-install-plugin</artifactId><version>2.5.2</version></plugin><!-- Maven Surefire Plugin --><plugin><groupId>org.apache.maven.plugins</groupId><artifactId>maven-surefire-plugin</artifactId><version>2.22.1</version><configuration><useSystemClassLoader>false</useSystemClassLoader></configuration></plugin><!-- Maven Failsafe Plugin --><plugin><groupId>org.apache.maven.plugins</groupId><artifactId>maven-failsafe-plugin</artifactId><version>2.22.1</version></plugin><!-- Maven Deploy Plugin --><plugin><groupId>org.apache.maven.plugins</groupId><artifactId>maven-deploy-plugin</artifactId><version>2.8.2</version></plugin><!-- Apache Sling Plugin --><plugin><groupId>org.apache.sling</groupId><artifactId>sling-maven-plugin</artifactId><version>2.4.0</version><configuration><slingUrl>http://${aem.host}:${aem.port}/system/console</slingUrl><deploymentMethod>WebConsole</deploymentMethod></configuration></plugin><!-- HTL Maven Plugin --><plugin><groupId>org.apache.sling</groupId><artifactId>htl-maven-plugin</artifactId><version>1.3.4-1.4.0</version><configuration><failOnWarnings>true</failOnWarnings></configuration></plugin><!-- Jackrabbit FileVault Package Plugin --><plugin><groupId>org.apache.jackrabbit</groupId><artifactId>filevault-package-maven-plugin</artifactId><version>1.0.3</version><configuration><filterSource>src/main/content/META-INF/vault/filter.xml</filterSource></configuration></plugin><!-- Content Package Plugin --><plugin><groupId>com.day.jcr.vault</groupId><artifactId>content-package-maven-plugin</artifactId><version>1.0.2</version><configuration><targetURL>http://${aem.host}:${aem.port}/crx/packmgr/service.jsp</targetURL><failOnError>true</failOnError><userId>${vault.user}</userId><password>${vault.password}</password></configuration></plugin><!-- Maven Enforcer Plugin --><plugin><groupId>org.apache.maven.plugins</groupId><artifactId>maven-enforcer-plugin</artifactId><version>1.4.1</version></plugin><!-- Maven Dependency Plugin --><plugin><groupId>org.apache.maven.plugins</groupId><artifactId>maven-dependency-plugin</artifactId><version>3.0.0</version></plugin><!-- Build Helper Maven Plugin --><plugin><groupId>org.codehaus.mojo</groupId><artifactId>build-helper-maven-plugin</artifactId><version>3.0.0</version></plugin><!--This plugin's configuration is used to store Eclipsem2e settings only. It has no influence on the Maven build itself. --><plugin><groupId>org.eclipse.m2e</groupId><artifactId>lifecycle-mapping</artifactId><version>1.0.0</version><configuration><lifecycleMappingMetadata><pluginExecutions><pluginExecution><pluginExecutionFilter><groupId>org.apache.maven.plugins</groupId><artifactId>maven-enforcer-plugin</artifactId><versionRange>[1.0.0,)</versionRange><goals><goal>enforce</goal></goals></pluginExecutionFilter><action><ignore /></action></pluginExecution><pluginExecution><pluginExecutionFilter><groupId>org.apache.maven.plugins</groupId><artifactId>maven-dependency-plugin</artifactId><versionRange>[2.2,)</versionRange><goals><goal>copy-dependencies</goal><goal>unpack</goal></goals></pluginExecutionFilter><action><ignore /></action></pluginExecution><pluginExecution><pluginExecutionFilter><groupId>org.codehaus.mojo</groupId><artifactId>build-helper-maven-plugin</artifactId><versionRange>[1.5,)</versionRange><goals><goal>reserve-network-port</goal></goals></pluginExecutionFilter><action><ignore /></action></pluginExecution></pluginExecutions></lifecycleMappingMetadata></configuration></plugin></plugins></pluginManagement></build><profiles><!-- ====================================================== --><!-- A D O B E P U B L I C P R O F I L E --><!-- ====================================================== --><profile><id>adobe-public</id><activation><activeByDefault>true</activeByDefault></activation><properties><releaseRepository-Id>adobe-public-releases</releaseRepository-Id><releaseRepository-Name>Adobe Public Releases</releaseRepository-Name><releaseRepository-URL>https://repo.adobe.com/nexus/content/groups/public</releaseRepository-URL></properties><repositories><repository><id>adobe-public-releases</id><name>Adobe Public Repository</name><url>https://repo.adobe.com/nexus/content/groups/public</url><releases><enabled>true</enabled><updatePolicy>never</updatePolicy></releases><snapshots><enabled>false</enabled></snapshots></repository><repository><id>adobe-aem-releases</id><name>Adobe AEM Repository</name><url>https://downloads.experiencecloud.adobe.com/content/maven/public</url><releases><enabled>true</enabled><updatePolicy>never</updatePolicy></releases><snapshots><enabled>false</enabled></snapshots></repository></repositories><pluginRepositories><pluginRepository><id>adobe-public-releases</id><name>Adobe Public Repository</name><url>https://repo.adobe.com/nexus/content/groups/public</url><releases><enabled>true</enabled><updatePolicy>never</updatePolicy></releases><snapshots><enabled>false</enabled></snapshots></pluginRepository></pluginRepositories></profile><!-- Development profile: install only the bundle --><profile><id>autoInstallBundle</id><!--To enable this feature for a bundle, the sling-maven-plugin(without configuration) needs to be included:<plugin><groupId>org.apache.sling</groupId><artifactId>sling-maven-plugin</artifactId></plugin>--><activation><activeByDefault>false</activeByDefault></activation><build><pluginManagement><plugins><plugin><groupId>org.apache.sling</groupId><artifactId>sling-maven-plugin</artifactId><executions><execution><id>install-bundle</id><goals><goal>install</goal></goals></execution></executions></plugin></plugins></pluginManagement></build></profile><profile><id>autoInstallPackage</id><activation><activeByDefault>false</activeByDefault></activation><build><pluginManagement><plugins><plugin><groupId>org.apache.jackrabbit</groupId><artifactId>filevault-package-maven-plugin</artifactId><executions><execution><id>create-package</id><goals><goal>package</goal></goals></execution></executions></plugin><plugin><groupId>com.day.jcr.vault</groupId><artifactId>content-package-maven-plugin</artifactId><executions><execution><id>install-package</id><goals><goal>install</goal></goals><configuration><targetURL>http://${aem.host}:${aem.port}/crx/packmgr/service.jsp</targetURL></configuration></execution></executions></plugin></plugins></pluginManagement></build></profile><profile><id>autoInstallPackagePublish</id><activation><activeByDefault>false</activeByDefault></activation><build><pluginManagement><plugins><plugin><groupId>org.apache.jackrabbit</groupId><artifactId>filevault-package-maven-plugin</artifactId><executions><execution><id>create-package</id><goals><goal>package</goal></goals></execution></executions></plugin><plugin><groupId>com.day.jcr.vault</groupId><artifactId>content-package-maven-plugin</artifactId><executions><execution><id>install-package-publish</id><goals><goal>install</goal></goals><configuration><targetURL>http://${aem.publish.host}:${aem.publish.port}/crx/packmgr/service.jsp</targetURL></configuration></execution></executions></plugin></plugins></pluginManagement></build></profile></profiles><!-- ====================================================================== --><!-- D E P E N D E N C I E S --><!-- ====================================================================== --><dependencyManagement><dependencies><!-- OSGi Dependencies --><dependency><groupId>org.osgi</groupId><artifactId>org.osgi.annotation.versioning</artifactId><version>1.1.0</version><scope>provided</scope></dependency><dependency><groupId>org.osgi</groupId><artifactId>org.osgi.annotation.bundle</artifactId><version>1.0.0</version><scope>provided</scope></dependency><dependency><groupId>org.osgi</groupId><artifactId>org.osgi.service.metatype.annotations</artifactId><version>1.4.0</version><scope>provided</scope></dependency><dependency><groupId>org.osgi</groupId><artifactId>org.osgi.service.component.annotations</artifactId><version>1.4.0</version><scope>provided</scope></dependency><dependency><groupId>org.osgi</groupId><artifactId>org.osgi.service.component</artifactId><version>1.4.0</version><scope>provided</scope></dependency><dependency><groupId>org.osgi</groupId><artifactId>org.osgi.service.cm</artifactId><version>1.6.0</version><scope>provided</scope></dependency><dependency><groupId>org.osgi</groupId><artifactId>org.osgi.service.event</artifactId><version>1.3.1</version><scope>provided</scope></dependency><dependency><groupId>org.osgi</groupId><artifactId>org.osgi.service.log</artifactId><version>1.4.0</version><scope>provided</scope></dependency><dependency><groupId>org.osgi</groupId><artifactId>org.osgi.resource</artifactId><version>1.0.0</version><scope>provided</scope></dependency><dependency><groupId>org.osgi</groupId><artifactId>org.osgi.framework</artifactId><version>1.9.0</version><scope>provided</scope></dependency><dependency><groupId>org.apache.sling</groupId><artifactId>org.apache.sling.servlets.annotations</artifactId><version>1.2.4</version><scope>provided</scope></dependency><!-- Logging Dependencies --><dependency><groupId>org.slf4j</groupId><artifactId>slf4j-api</artifactId><version>1.7.21</version><scope>provided</scope></dependency><dependency><groupId>org.slf4j</groupId><artifactId>slf4j-simple</artifactId><version>1.7.25</version><scope>test</scope></dependency><!-- Adobe AEM Dependencies --><dependency><groupId>com.adobe.aem</groupId><artifactId>uber-jar</artifactId><version>6.5.0</version><classifier>apis</classifier><scope>provided</scope></dependency><!-- Apache Sling Dependencies --><dependency><groupId>org.apache.sling</groupId><artifactId>org.apache.sling.models.api</artifactId><version>1.3.6</version><scope>provided</scope></dependency><!-- Servlet API --><dependency><groupId>javax.servlet</groupId><artifactId>javax.servlet-api</artifactId><version>3.1.0</version><scope>provided</scope></dependency><dependency><groupId>javax.servlet.jsp</groupId><artifactId>jsp-api</artifactId><version>2.1</version><scope>provided</scope></dependency><dependency><groupId>javax.annotation</groupId><artifactId>javax.annotation-api</artifactId><version>1.3.2</version><scope>provided</scope></dependency><!-- JCR --><dependency><groupId>javax.jcr</groupId><artifactId>jcr</artifactId><version>2.0</version><scope>provided</scope></dependency><!-- Taglibs --><dependency><groupId>com.day.cq.wcm</groupId><artifactId>cq-wcm-taglib</artifactId><version>5.7.4</version><scope>provided</scope></dependency><dependency><groupId>com.adobe.cq</groupId><artifactId>core.wcm.components.core</artifactId><version>${core.wcm.components.version}</version></dependency><dependency><groupId>com.adobe.cq</groupId><artifactId>core.wcm.components.content</artifactId><type>zip</type><version>${core.wcm.components.version}</version></dependency><dependency><groupId>com.adobe.cq</groupId><artifactId>core.wcm.components.config</artifactId><type>zip</type><version>${core.wcm.components.version}</version></dependency><!-- SPA Project Core (includes hierarchy page model) --><dependency><groupId>com.adobe.aem</groupId><artifactId>spa.project.core.all</artifactId><type>zip</type><version>${spa.project.core.version}</version></dependency><dependency><groupId>com.adobe.aem</groupId><artifactId>spa.project.core.core</artifactId><version>${spa.project.core.version}</version></dependency><!-- Testing --><dependency><groupId>org.junit</groupId><artifactId>junit-bom</artifactId><version>5.4.1</version><type>pom</type><scope>import</scope></dependency><dependency><groupId>org.mockito</groupId><artifactId>mockito-core</artifactId><version>2.25.1</version><scope>test</scope></dependency><dependency><groupId>org.mockito</groupId><artifactId>mockito-junit-jupiter</artifactId><version>2.25.1</version><scope>test</scope></dependency><dependency><groupId>junit-addons</groupId><artifactId>junit-addons</artifactId><version>1.4</version><scope>test</scope></dependency><dependency><groupId>io.wcm</groupId><artifactId>io.wcm.testing.aem-mock.junit5</artifactId><version>2.5.2</version><scope>test</scope></dependency><dependency><groupId>uk.org.lidalia</groupId><artifactId>slf4j-test</artifactId><version>1.0.1</version><scope>test</scope></dependency></dependencies></dependencyManagement></project>

Next step is to create a new file named pom.xml in the aemreact/react-app folder. Add the following code:

<?xml version="1.0" encoding="UTF-8"?><project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd"><modelVersion>4.0.0</modelVersion><!-- ====================================================================== --><!-- P A R E N T  P R O J E C T  D E S C R I P T I O N                      --><!-- ====================================================================== --><parent><groupId>com.aemreact</groupId><artifactId>aemreact</artifactId><version>1.0-SNAPSHOT</version><relativePath>../pom.xml</relativePath></parent><!-- ====================================================================== --><!-- P R O J E C T  D E S C R I P T I O N                                   --><!-- ====================================================================== --><artifactId>aemreact.react.app</artifactId><packaging>pom</packaging><name>WKND Events - React App</name><description>UI React application code for WKND Events</description><!-- ====================================================================== --><!-- B U I L D   D E F I N I T I O N                                        --><!-- ====================================================================== --><build><plugins><plugin><groupId>com.github.eirslett</groupId><artifactId>frontend-maven-plugin</artifactId><version>${frontend-maven-plugin.version}</version><executions><execution><id>install node and npm</id><goals><goal>install-node-and-npm</goal></goals><configuration><nodeVersion>${node.version}</nodeVersion><npmVersion>${npm.version}</npmVersion></configuration></execution><execution><id>npm install</id><goals><goal>npm</goal></goals><!-- Optional configuration which provides for running any npm command --><configuration><arguments>install</arguments></configuration></execution><execution><id>npm run build</id><goals><goal>npm</goal></goals><configuration><arguments>run build</arguments></configuration></execution></executions></plugin></plugins></build></project>

Within the react-app folder run the following Maven command to trigger a front end build:

mvn clean install

Then, move to the parent folder aemreact and in the terminal, run this command to build the entire project and deploy it to AEM:

mvn -PautoInstallPackage -Padobe-public clean install

If you now check the local AEM environment, and navigate to the CRXDE-Lite, you should see the project deployed under /apps/aemreact/clientlibs/react-app.

Integrate the React app via the client library

In the IDE, open up the file customheaderlibs.html which is found under \aemreact\ui.apps\src\main\content\jcr_root\apps\aemreact\components\page.

Add the following code:

<!--/*Custom Headerlibs for React Site*/--><meta name="viewport" content="width=device-width, initial-scale=1"><meta property="cq:datatype" data-sly-test="${wcmmode.edit || wcmmode.preview}" content="JSON"/><meta property="cq:wcmmode" data-sly-test="${wcmmode.edit}" content="edit"/><meta property="cq:wcmmode" data-sly-test="${wcmmode.preview}" content="preview"/><meta property="cq:pagemodel_root_url"data-sly-use.page="com.adobe.aem.spa.project.core.models.Page"content="${page.rootUrl}"/><sly data-sly-use.clientlib="/libs/granite/sightly/templates/clientlib.html"><sly data-sly-call="${clientlib.css @ categories='aemreact.react'}"/>

In the same folder, you should see a customfooterlibs.html file. Replace the existing code with the following:

<!--/*Custom footer React libs*/--><sly data-sly-use.clientLib="${'/libs/granite/sightly/templates/clientlib.html'}"></sly><sly data-sly-test="${wcmmode.edit || wcmmode.preview}"data-sly-call="${clientLib.js @ categories='cq.authoring.pagemodel.messaging'}"></sly><sly data-sly-call="${clientLib.js @ categories='aemreact.react'}"></sly>

Then, create a new file in the same folder and name it body.html. Add the following code:

<!--/* - body.html - includes div that will be targeted by SPA */--><div id="root"></div>

To deploy these changes to AEM, we need to run again this command in the project root folder (aemreact):

mvn -PautoInstallPackage -Padobe-public clean install

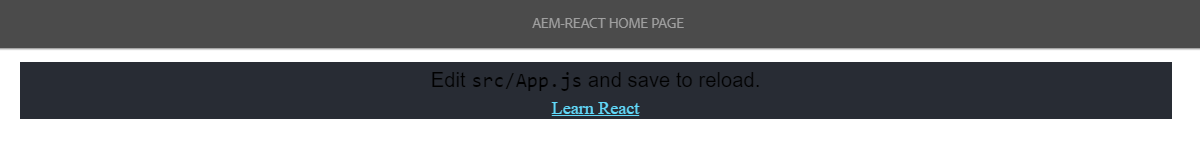

Navigate to your local AEM instance and you should see your new React application.

I removed the height property in the App.css file, because the height kept growing. We’ll take care of styling later on.

The next step is to install an AEM SPA editor, so that we can edit the contents of the React app.
